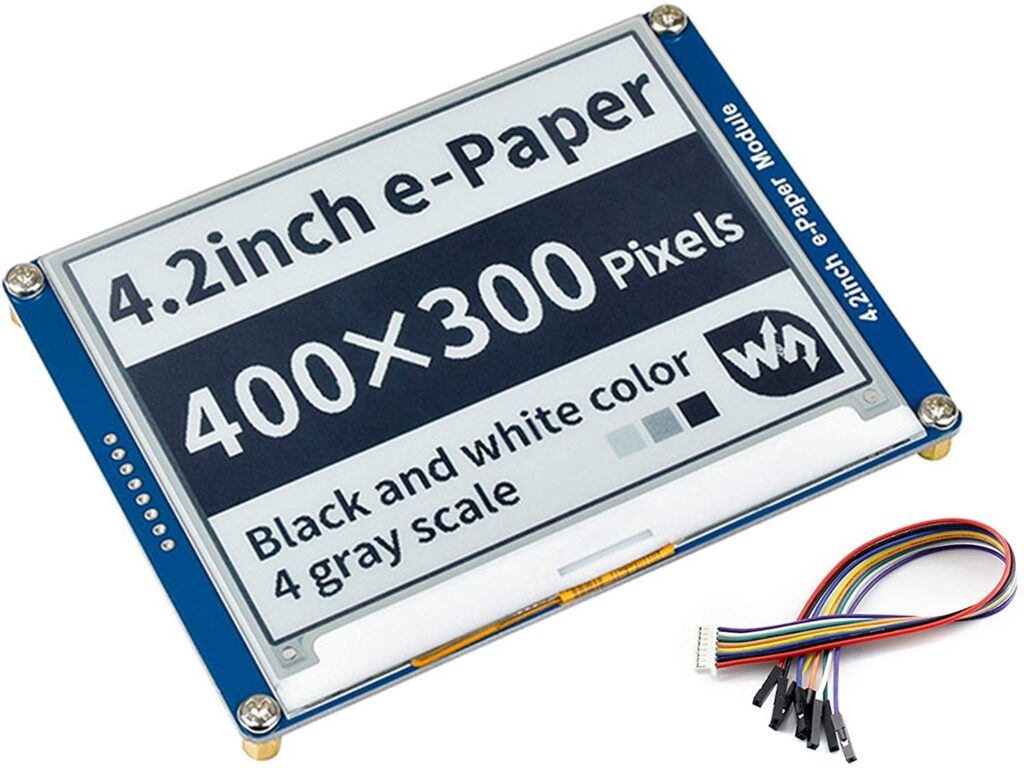

A 4.2-inch E-Ink display is an electronic paper display (EPD) with a diagonal size of 4.2 inches, commonly used for low-power, high-visibility applications such as e-readers, shelf labels, IoT devices, and information boards. E-Ink technology mimics the appearance of printed paper, using microscopic capsules filled with black and white particles that move when an electric field is applied. The screen only consumes power when changing the image — it can hold the display without energy.
Size: 4.2 inches diagonal (about 84.8 × 63.6 mm active area, depending on manufacturer)
Resolution: Commonly 400 × 300 pixels (around 112 PPI)
Color: Typically black & white; some variants include red or yellow tricolor
Viewing Angle: Nearly 180°
Power Use: Extremely low — power is used only during updates
Readability: Excellent in bright sunlight, no glare
Update Time: Usually 0.3–2 seconds (slower than LCD/OLED)
Interface: Often SPI (Serial Peripheral Interface) for micro-controller communication
Advantages
Ultra-low power → Ideal for battery-powered projects
Paper-like readability → Comfortable for long viewing
Retains image without power → Perfect for static or infrequently updated info
Wide viewing angle → Looks the same from any direction
No backlight needed → Uses ambient light (but you can add front-light if needed)
Let’s Do it ! Hardware Connections First
As we now know from above info that e-paper display is spi supported so different models of esp32 can have different spi pins . Refer to specific model datasheet for detailed spi pin-out. WE are using esp32 WROOM32 dev board having the below pin-outs.

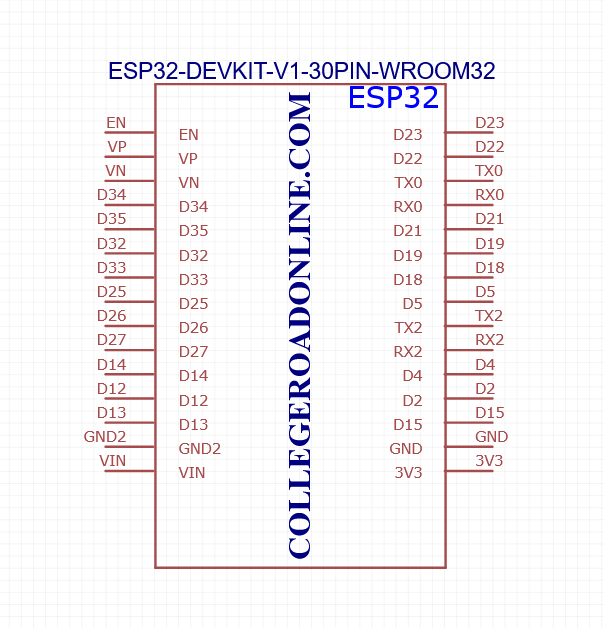

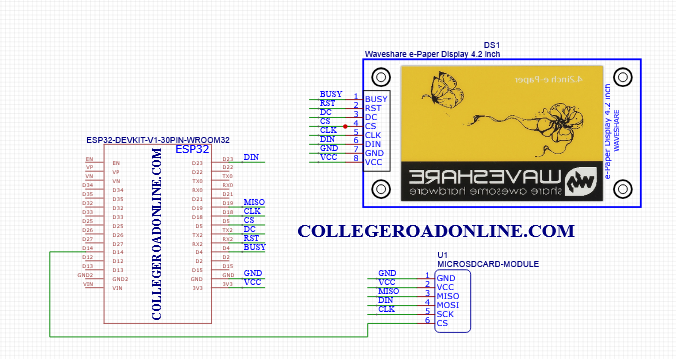

Now we need to connect esp32 spi pins to 4.2 inch display pins. Let me give a Circuit diagram for better understanding.Additionally we will also need a sd card module to save our images in sd card first.
Follow the above connections and make sure e paper display is connected with 3.3v not with Vin pin of controller.Now you should download your target image and convert its dimensions to the specified display you are using as mine is 400×300. File format should be monochrome bmp image. Now insert that file into SD-card and Place card into the sd-card module jacket. Below is my image that i want to display on my display.
Now lets go to Programming section.
Programming the ESP32 Board

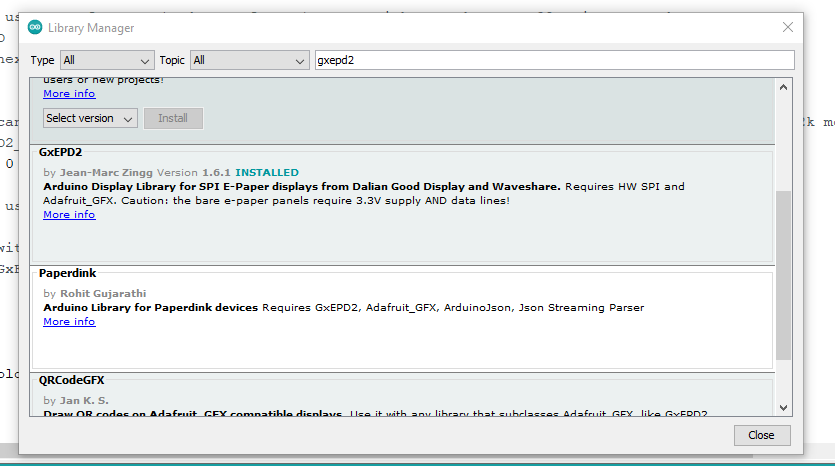

Their is a specified library for the e-paper display for esp32 that we need to download. Let me give you its name. you can find GxEPD2 named library in boards manager of Arduino. First download this one, as i have already downloaded one below.
Below is my sketch file working with my setup. you just need to change your image name in the sketch as you have named it during resolution setting. For simplicity i have set it to image0,image1 then so on. copy the below code and try with your setup. my working setup image is also shown below.

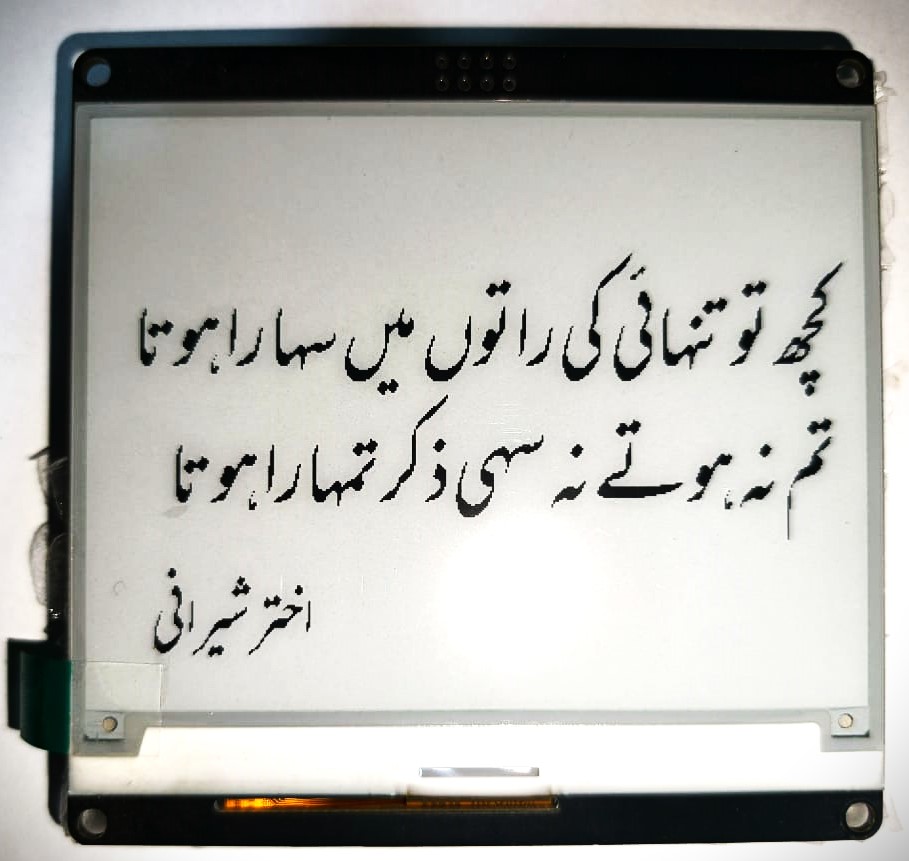

Working Prototype with some URDU QUOTES
below is the snap of working prototype of the setup.
Collegeroadonline.com
Working Sketch
In below sketch one must define the image names in sd card as image0 to number of images he wants. This code has a for loop in end part of void setup that can be setup as per images in sd card. Thanks for Reading the blog .Let me know if you got any issue in working of e ink display.
// uncomment next line to use HSPI for EPD (and VSPI for SD), e.g. with Waveshare ESP32 Driver Board
//#define USE_HSPI_FOR_EPD
// alternately uncomment next line to use HSPI for SD (and VSPI for EPD), e.g. with Waveshare ESP32 Driver Board
//#define USE_HSPI_FOR_SD
// base class GxEPD2_GFX can be used to pass references or pointers to the display instance as parameter, uses ~1.2k more code
// enable or disable GxEPD2_GFX base class
#define ENABLE_GxEPD2_GFX 0
// uncomment next line to use class GFX of library GFX_Root instead of Adafruit_GFX
//#include <GFX.h>
// Note: if you use this with ENABLE_GxEPD2_GFX 1:
// uncomment it in GxEPD2_GFX.h too, or add #include <GFX.h> before any #include <GxEPD2_GFX.h>
#include <GxEPD2_BW.h>
#include <GxEPD2_3C.h>
#include <GxEPD2_7C.h>
#include <Fonts/FreeMonoBold9pt7b.h>
#if defined(ESP32)
#include "FS.h"
#include "SD.h"
#include "SPI.h"
#else
#include <SPI.h>
#include <SD.h>
#endif
// #define EPD_CS before #include "GxEPD2_display_selection_new_style.h" to override default
#if defined (ESP8266)
#define SD_CS SS // e.g. for RobotDyn Wemos D1 mini SD board
#define EPD_CS D1 // alternative I use with RobotDyn Wemos D1 mini SD board
#endif
#if defined(ESP32)
#if defined(USE_HSPI_FOR_EPD) || defined(USE_HSPI_FOR_SD)
#define SD_CS SS
#define EPD_CS 14
SPIClass hspi(HSPI);
#else
#define SD_CS 14 // adapted to my wiring
#endif
#endif
#if defined(ARDUINO_ARCH_RP2040) && defined(ARDUINO_RASPBERRY_PI_PICO)
// Waveshare PhotoPainter
#define EPD_RST_PIN 12
#define EPD_DC_PIN 8
#define EPD_CS_PIN 9
#define EPD_BUSY_PIN 13
#define EPD_CLK_PIN 10
#define EPD_MOSI_PIN 11
#define SD_CS_PIN 5
#define SD_CLK_PIN 2
#define SD_MOSI_PIN 3
#define SD_MISO_PIN 4
#define EPD_CS EPD_CS_PIN
#define SD_CS SD_CS_PIN
#if defined(__MBED__)
// MbedSPI(int miso, int mosi, int sck);
arduino::MbedSPI EPD_SPI(12, EPD_MOSI_PIN, EPD_CLK_PIN);
arduino::MbedSPI SD_SPI(SD_MISO_PIN, SD_MOSI_PIN, SD_CS_PIN);
#else // package https://github.com/earlephilhower/arduino-pico
// SPIClassRP2040(spi_inst_t *spi, pin_size_t rx, pin_size_t cs, pin_size_t sck, pin_size_t tx);
SPIClassRP2040 EPD_SPI(spi1, 12, 13, 10, 11);
SPIClassRP2040 SD_SPI(spi0, SD_MISO_PIN, SD_CS_PIN, SD_CLK_PIN, SD_MOSI_PIN);
#endif
#endif
#if defined(__AVR)
#define SD_CS 6 // adapt to your wiring
#define EPD_CS SS // adapt to your wiring
// most AVR Arduinos have not enough RAM for use with SD and buffered graphics
// !!! use GxEPD2_SD_AVR_Example.ino instead !!!
//GxEPD2_154 display(/*CS=10*/ EPD_CS, /*DC=*/ 8, /*RST=*/ 9, /*BUSY=*/ 7);
#endif
// select the display class and display driver class in the following file (new style):
// don't forget to modify or override EPD_CS if needed
#include "GxEPD2_display_selection_new_style.h"
// note that BMP bitmaps are drawn at physical position in physical orientation of the screen
// function declaration with default parameter
void drawBitmapFromSD(const char *filename, int16_t x, int16_t y, bool with_color = true);
// bitmap drawing using buffered graphics, e.g. for small bitmaps or for GxEPD2_154c
// draws BMP bitmap according to set orientation
// partial_update selects refresh mode (not effective for GxEPD2_154c)
// overwrite = true does not clear buffer before drawing, use only if buffer is full height
void drawBitmapFromSD_Buffered(const char *filename, int16_t x, int16_t y, bool with_color = true, bool partial_update = false, bool overwrite = false);
void setup()
{
delay(5000);
Serial.begin(115200);
Serial.println();
Serial.println("GxEPD2_SD_Example");
#if defined(ESP32) && defined(USE_HSPI_FOR_EPD)
hspi.begin(13, 12, 14, 15); // remap hspi for EPD (swap pins)
display.epd2.selectSPI(hspi, SPISettings(4000000, MSBFIRST, SPI_MODE0));
#elif defined(ESP32) && defined(USE_HSPI_FOR_SD)
SPI.begin(13, 12, 14, 15); // remap SPI for EPD
hspi.begin(SCK, MISO, MOSI, SS); // remap hspi for SD
#endif
#if defined(ARDUINO_ARCH_RP2040) && defined(ARDUINO_RASPBERRY_PI_PICO)
display.epd2.selectSPI(EPD_SPI, SPISettings(4000000, MSBFIRST, SPI_MODE0));
// uncomment next line for Waveshare PhotoPainter module
pinMode(16, OUTPUT); digitalWrite(16, HIGH); // power to the paper
#endif
//display.init(115200); // default 10ms reset pulse, e.g. for bare panels with DESPI-C02
display.init(115200, true, 2, false); // USE THIS for Waveshare boards with "clever" reset circuit, 2ms reset pulse
Serial.print("Initializing SD card...");
#if defined(ESP32) && defined(USE_HSPI_FOR_SD)
if (!SD.begin(SD_CS, hspi))
{
Serial.println("SD failed!");
return;
}
#elif defined(ARDUINO_ARCH_RP2040) && defined(ARDUINO_RASPBERRY_PI_PICO)
if (!SD.begin(SD_CS, SD_SPI))
{
Serial.println("SD failed!");
return;
}
#else
if (!SD.begin(SD_CS))
{
Serial.println("SD failed!");
return;
}
#endif
Serial.println("SD OK!");
listFiles();
// 400x300 image display
int16_t w2 = display.width() / 2;
int16_t h2 = display.height() / 2;
for (int i = 0; i <= 7; i++) { // Change '10' to the total number of images
char filename[20];
sprintf(filename, "/image%d.bmp", i); // Format filename dynamically
drawBitmapFromSD(filename, w2-190, h2-160); // Display image at (0,0)
delay(20000); // Wait 2 seconds before showing the next image
}
if ((display.epd2.panel == GxEPD2::GDEW0154Z04) || (display.epd2.panel == GxEPD2::ACeP565) || (display.epd2.panel == GxEPD2::GDEY073D46) || (display.epd2.panel == GxEPD2::ACeP730) || false)
{
//drawBitmapsBuffered_200x200();
//drawBitmapsBuffered_other();
//drawBitmapsBuffered_test();
//drawBitmapsBuffered_7c();
//drawBitmaps_200x200();
Serial.println("in if........");
}
else
{
Serial.println("in else........");
// drawBitmaps_other();
}
// drawBitmaps_other();
Serial.println("GxEPD2_SD_Example done");
}
void loop(void)
{
}
void listFiles()
{
Serial.println("All Files on SD:");
File root = SD.open("/");
if (root)
{
if (root.isDirectory())
{
File file = root.openNextFile();
while (file)
{
Serial.print(" ");
Serial.print(file.name());
spaces(20 - strlen(file.name()));
Serial.print(" ");
Serial.print(file.size());
Serial.print(" bytes");
Serial.println();
file = root.openNextFile();
}
Serial.println("no more files...");
} else Serial.print("Not a directory");
} else Serial.print("failed to open root directory");
}
void spaces(int num)
{
for (int i = 0; i < num; i++)
{
Serial.print(" ");
}
}
void drawBitmaps_200x200()
{
int16_t x = (display.width() - 200) / 2;
int16_t y = (display.height() - 200) / 2;
drawBitmapFromSD("test_400x300.bmp", x, y);
delay(10000);
// drawBitmapFromSD("test2200_200.bmp", x, y);
// delay(1000);
// drawBitmapFromSD("test3200_200.bmp", x, y);
// delay(2000);
// drawBitmapFromSD("third200x200.bmp", x, y);
// delay(2000);
// drawBitmapFromSD("fourth200x200.bmp", x, y);
// delay(2000);
// drawBitmapFromSD("fifth200x200.bmp", x, y);
// delay(2000);
// drawBitmapFromSD("sixth200x200.bmp", x, y);
// delay(2000);
// drawBitmapFromSD("seventh200x200.bmp", x, y);
// delay(2000);
// drawBitmapFromSD("eighth200x200.bmp", x, y);
// delay(2000);
}
void drawBitmaps_other()
{
int16_t w2 = display.width() / 2;
int16_t h2 = display.height() / 2;
// drawBitmapFromSD("test_400x300.bmp", w2 - 180, h2 - 160);
// delay(10000);
for (int i = 0; i <= 2; i++) { // Change '10' to the total number of images
char filename[20];
sprintf(filename, "/image%d.bmp", i); // Format filename dynamically
drawBitmapFromSD(filename, w2-190, h2-160); // Display image at (0,0)
delay(20000); // Wait 2 seconds before showing the next image
}
// drawBitmapFromSD("test_400x300.bmp", w2 - 100, h2 - 160);
// delay(2000);
// drawBitmapFromSD("betty_4.bmp", w2 - 102, h2 - 126);
// delay(2000);
// drawBitmapFromSD("marilyn_240x240x8.bmp", w2 - 120, h2 - 120);
// delay(2000);
// drawBitmapFromSD("miniwoof.bmp", w2 - 60, h2 - 80);
// delay(2000);
// drawBitmapFromSD("test1200_200.bmp", w2 - 100, h2 - 100);
// delay(2000);
// drawBitmapFromSD("test.bmp", w2 - 120, h2 - 160);
// delay(2000);
// drawBitmapFromSD("tiger.bmp", w2 - 160, h2 - 120);
// delay(2000);
// drawBitmapFromSD("tiger_178x160x4.bmp", w2 - 89, h2 - 80);
// delay(2000);
// drawBitmapFromSD("tiger_240x317x4.bmp", w2 - 120, h2 - 160);
// delay(2000);
// drawBitmapFromSD("tiger_320x200x24.bmp", w2 - 160, h2 - 100);
// delay(2000);
// drawBitmapFromSD("tiger16T.bmp", w2 - 160, h2 - 120);
// delay(2000);
// drawBitmapFromSD("woof.bmp", w2 - 120, h2 - 160);
// delay(2000);
// drawBitmapFromSD("bitmap640x384_1.bmp", 0, 0);
// delay(2000);
}
void drawBitmaps_test()
{
int16_t w2 = display.width() / 2;
int16_t h2 = display.height() / 2;
drawBitmapFromSD("baby.bmp", w2 - 102, h2 - 126);
delay(2000);
drawBitmapFromSD("bb4.bmp", 0, 0);
delay(2000);
drawBitmapFromSD("output5.bmp", 0, 0);
delay(2000);
drawBitmapFromSD("output6.bmp", 0, 0);
delay(2000);
drawBitmapFromSD("tractor_1.bmp", 0, 0);
delay(2000);
drawBitmapFromSD("tractor_4.bmp", 0, 0);
delay(2000);
//drawBitmapFromSD("tractor_8.bmp", 0, 0); // format 1: BI_RLE8 is not supported
//delay(2000);
drawBitmapFromSD("tractor_11.bmp", 0, 0);
delay(2000);
drawBitmapFromSD("tractor_44.bmp", 0, 0);
delay(2000);
drawBitmapFromSD("tractor_88.bmp", 0, 0);
delay(2000);
}
void drawBitmapsBuffered_200x200()
{
int16_t x = (display.width() - 200) / 2;
int16_t y = (display.height() - 200) / 2;
drawBitmapFromSD_Buffered("baby.bmp", x, y);
delay(2000);
drawBitmapFromSD_Buffered("first200x200.bmp", x, y);
delay(2000);
drawBitmapFromSD_Buffered("second200x200.bmp", x, y);
delay(2000);
drawBitmapFromSD_Buffered("third200x200.bmp", x, y);
delay(2000);
drawBitmapFromSD_Buffered("fourth200x200.bmp", x, y);
delay(2000);
drawBitmapFromSD_Buffered("fifth200x200.bmp", x, y);
delay(2000);
drawBitmapFromSD_Buffered("sixth200x200.bmp", x, y);
delay(2000);
drawBitmapFromSD_Buffered("seventh200x200.bmp", x, y);
delay(2000);
drawBitmapFromSD_Buffered("eighth200x200.bmp", x, y);
delay(2000);
}
void drawBitmapsBuffered_other()
{
int16_t w2 = display.width() / 2;
int16_t h2 = display.height() / 2;
drawBitmapFromSD_Buffered("baby.bmp", w2 - 64, h2 - 80);
delay(2000);
drawBitmapFromSD_Buffered("betty_1.bmp", w2 - 100, h2 - 160);
delay(2000);
drawBitmapFromSD_Buffered("betty_4.bmp", w2 - 102, h2 - 126);
delay(2000);
drawBitmapFromSD_Buffered("marilyn_240x240x8.bmp", w2 - 120, h2 - 120);
delay(2000);
drawBitmapFromSD_Buffered("miniwoof.bmp", w2 - 60, h2 - 80);
delay(2000);
drawBitmapFromSD_Buffered("t200x200.bmp", w2 - 100, h2 - 100);
delay(2000);
drawBitmapFromSD_Buffered("test.bmp", w2 - 120, h2 - 160);
delay(2000);
drawBitmapFromSD_Buffered("tiger.bmp", w2 - 160, h2 - 120);
delay(2000);
drawBitmapFromSD_Buffered("tiger_178x160x4.bmp", w2 - 89, h2 - 80);
delay(2000);
drawBitmapFromSD_Buffered("tiger_240x317x4.bmp", w2 - 120, h2 - 160);
delay(2000);
drawBitmapFromSD_Buffered("tiger_320x200x24.bmp", w2 - 160, h2 - 100);
delay(2000);
drawBitmapFromSD_Buffered("tiger16T.bmp", w2 - 160, h2 - 120);
delay(2000);
drawBitmapFromSD_Buffered("woof.bmp", w2 - 120, h2 - 160);
delay(2000);
drawBitmapFromSD_Buffered("bitmap640x384_1.bmp", 0, 0);
delay(2000);
}
void drawBitmapsBuffered_test()
{
int16_t w2 = display.width() / 2;
int16_t h2 = display.height() / 2;
//drawBitmapFromSD_Buffered("betty_4.bmp", w2 - 102, h2 - 126);
//delay(2000);
drawBitmapFromSD_Buffered("baby.bmp", w2 - 17, h2 - 9, false, true, true);
delay(2000);
drawBitmapFromSD_Buffered("rgb32.bmp", w2 - 64, h2 - 32);
delay(2000);
drawBitmapFromSD_Buffered("parrot.bmp", w2- 64, h2 - 80);
delay(2000);
drawBitmapFromSD_Buffered("5in65f3.bmp", w2 - 300, h2 - 224);
delay(2000);
}
void drawBitmapsBuffered_7c()
{
drawBitmapFromSD_Buffered("pic/building-7362300_1920_scale_output.bmp", 0, 0);
delay(3000);
drawBitmapFromSD_Buffered("pic/girl-3480900_1920_scale_output.bmp", 0, 0);
delay(3000);
drawBitmapFromSD_Buffered("pic/miniature-3589682_1920_scale_output.bmp", 0, 0);
delay(3000);
display.setRotation(1);
drawBitmapFromSD_Buffered("pic/pexels-boys-in-bristol-photography-13318095_scale_output.bmp", 0, 0);
delay(3000);
drawBitmapFromSD_Buffered("pic/pexels-efe-ersoy-15686039_scale_output.bmp", 0, 0);
delay(3000);
drawBitmapFromSD_Buffered("pic/pexels-jill-burrow-6069730_scale_output.bmp", 0, 0);
delay(3000);
drawBitmapFromSD_Buffered("pic/pexels-yelena-odintsova-15792199_scale_output.bmp", 0, 0);
delay(3000);
drawBitmapFromSD_Buffered("pic/pexels-ольга-солодилова-15912787_scale_output.bmp", 0, 0);
delay(3000);
display.setRotation(0);
drawBitmapFromSD_Buffered("pic/venice-2896591_1920_scale_output", 0, 0);
delay(3000);
drawBitmapFromSD_Buffered("pic/venice-2937352_1920_scale_output.bmp", 0, 0);
delay(3000);
}
//static const uint16_t input_buffer_pixels = 20; // may affect performance
static const uint16_t input_buffer_pixels = 800; // may affect performance
static const uint16_t max_row_width = 1448; // for up to 6" display 1448x1072
static const uint16_t max_palette_pixels = 256; // for depth <= 8
uint8_t input_buffer[3 * input_buffer_pixels]; // up to depth 24
uint8_t output_row_mono_buffer[max_row_width / 8]; // buffer for at least one row of b/w bits
uint8_t output_row_color_buffer[max_row_width / 8]; // buffer for at least one row of color bits
uint8_t mono_palette_buffer[max_palette_pixels / 8]; // palette buffer for depth <= 8 b/w
uint8_t color_palette_buffer[max_palette_pixels / 8]; // palette buffer for depth <= 8 c/w
uint16_t rgb_palette_buffer[max_palette_pixels]; // palette buffer for depth <= 8 for buffered graphics, needed for 7-color display
void drawBitmapFromSD(const char *filename, int16_t x, int16_t y, bool with_color)
{
File file;
bool valid = false; // valid format to be handled
bool flip = true; // bitmap is stored bottom-to-top
uint32_t startTime = millis();
if ((x >= display.epd2.WIDTH) || (y >= display.epd2.HEIGHT)) return;
Serial.println();
Serial.print("Loading image '");
Serial.print(filename);
Serial.println('\'');
#if defined(ESP32)
file = SD.open(String("/") + filename , FILE_READ);
if (!file)
{
Serial.print("File not found");
return;
}
#else
file = SD.open(filename);
if (!file)
{
Serial.print("File not found");
return;
}
#endif
// Parse BMP header
if (read16(file) == 0x4D42) // BMP signature
{
uint32_t fileSize = read32(file);
uint32_t creatorBytes = read32(file); (void)creatorBytes; //unused
uint32_t imageOffset = read32(file); // Start of image data
uint32_t headerSize = read32(file);
uint32_t width = read32(file);
int32_t height = (int32_t) read32(file);
uint16_t planes = read16(file);
uint16_t depth = read16(file); // bits per pixel
uint32_t format = read32(file);
if ((planes == 1) && ((format == 0) || (format == 3))) // uncompressed is handled, 565 also
{
Serial.print("File size: "); Serial.println(fileSize);
Serial.print("Image Offset: "); Serial.println(imageOffset);
Serial.print("Header size: "); Serial.println(headerSize);
Serial.print("Bit Depth: "); Serial.println(depth);
Serial.print("Image size: ");
Serial.print(width);
Serial.print('x');
Serial.println(height);
// BMP rows are padded (if needed) to 4-byte boundary
uint32_t rowSize = (width * depth / 8 + 3) & ~3;
if (depth < 8) rowSize = ((width * depth + 8 - depth) / 8 + 3) & ~3;
if (height < 0)
{
height = -height;
flip = false;
}
uint16_t w = width;
uint16_t h = height;
if ((x + w - 1) >= display.epd2.WIDTH) w = display.epd2.WIDTH - x;
if ((y + h - 1) >= display.epd2.HEIGHT) h = display.epd2.HEIGHT - y;
if (w <= max_row_width) // handle with direct drawing
{
valid = true;
uint8_t bitmask = 0xFF;
uint8_t bitshift = 8 - depth;
uint16_t red, green, blue;
bool whitish = false;
bool colored = false;
if (depth == 1) with_color = false;
if (depth <= 8)
{
if (depth < 8) bitmask >>= depth;
//file.seek(54); //palette is always @ 54
file.seek(imageOffset - (4 << depth)); // 54 for regular, diff for colorsimportant
for (uint16_t pn = 0; pn < (1 << depth); pn++)
{
blue = file.read();
green = file.read();
red = file.read();
file.read();
//Serial.print(red); Serial.print(" "); Serial.print(green); Serial.print(" "); Serial.println(blue);
whitish = with_color ? ((red > 0x80) && (green > 0x80) && (blue > 0x80)) : ((red + green + blue) > 3 * 0x80); // whitish
colored = (red > 0xF0) || ((green > 0xF0) && (blue > 0xF0)); // reddish or yellowish?
if (0 == pn % 8) mono_palette_buffer[pn / 8] = 0;
mono_palette_buffer[pn / 8] |= whitish << pn % 8;
if (0 == pn % 8) color_palette_buffer[pn / 8] = 0;
color_palette_buffer[pn / 8] |= colored << pn % 8;
}
}
display.clearScreen();
uint32_t rowPosition = flip ? imageOffset + (height - h) * rowSize : imageOffset;
for (uint16_t row = 0; row < h; row++, rowPosition += rowSize) // for each line
{
uint32_t in_remain = rowSize;
uint32_t in_idx = 0;
uint32_t in_bytes = 0;
uint8_t in_byte = 0; // for depth <= 8
uint8_t in_bits = 0; // for depth <= 8
uint8_t out_byte = 0xFF; // white (for w%8!=0 border)
uint8_t out_color_byte = 0xFF; // white (for w%8!=0 border)
uint32_t out_idx = 0;
file.seek(rowPosition);
for (uint16_t col = 0; col < w; col++) // for each pixel
{
// Time to read more pixel data?
if (in_idx >= in_bytes) // ok, exact match for 24bit also (size IS multiple of 3)
{
in_bytes = file.read(input_buffer, in_remain > sizeof(input_buffer) ? sizeof(input_buffer) : in_remain);
in_remain -= in_bytes;
in_idx = 0;
}
switch (depth)
{
case 32:
blue = input_buffer[in_idx++];
green = input_buffer[in_idx++];
red = input_buffer[in_idx++];
in_idx++; // skip alpha
whitish = with_color ? ((red > 0x80) && (green > 0x80) && (blue > 0x80)) : ((red + green + blue) > 3 * 0x80); // whitish
colored = (red > 0xF0) || ((green > 0xF0) && (blue > 0xF0)); // reddish or yellowish?
break;
case 24:
blue = input_buffer[in_idx++];
green = input_buffer[in_idx++];
red = input_buffer[in_idx++];
whitish = with_color ? ((red > 0x80) && (green > 0x80) && (blue > 0x80)) : ((red + green + blue) > 3 * 0x80); // whitish
colored = (red > 0xF0) || ((green > 0xF0) && (blue > 0xF0)); // reddish or yellowish?
break;
case 16:
{
uint8_t lsb = input_buffer[in_idx++];
uint8_t msb = input_buffer[in_idx++];
if (format == 0) // 555
{
blue = (lsb & 0x1F) << 3;
green = ((msb & 0x03) << 6) | ((lsb & 0xE0) >> 2);
red = (msb & 0x7C) << 1;
}
else // 565
{
blue = (lsb & 0x1F) << 3;
green = ((msb & 0x07) << 5) | ((lsb & 0xE0) >> 3);
red = (msb & 0xF8);
}
whitish = with_color ? ((red > 0x80) && (green > 0x80) && (blue > 0x80)) : ((red + green + blue) > 3 * 0x80); // whitish
colored = (red > 0xF0) || ((green > 0xF0) && (blue > 0xF0)); // reddish or yellowish?
}
break;
case 1:
case 2:
case 4:
case 8:
{
if (0 == in_bits)
{
in_byte = input_buffer[in_idx++];
in_bits = 8;
}
uint16_t pn = (in_byte >> bitshift) & bitmask;
whitish = mono_palette_buffer[pn / 8] & (0x1 << pn % 8);
colored = color_palette_buffer[pn / 8] & (0x1 << pn % 8);
in_byte <<= depth;
in_bits -= depth;
}
break;
}
if (whitish)
{
// keep white
}
else if (colored && with_color)
{
out_color_byte &= ~(0x80 >> col % 8); // colored
}
else
{
out_byte &= ~(0x80 >> col % 8); // black
}
if ((7 == col % 8) || (col == w - 1)) // write that last byte! (for w%8!=0 border)
{
output_row_color_buffer[out_idx] = out_color_byte;
output_row_mono_buffer[out_idx++] = out_byte;
out_byte = 0xFF; // white (for w%8!=0 border)
out_color_byte = 0xFF; // white (for w%8!=0 border)
}
} // end pixel
uint16_t yrow = y + (flip ? h - row - 1 : row);
display.writeImage(output_row_mono_buffer, output_row_color_buffer, x, yrow, w, 1);
} // end line
Serial.print("loaded in "); Serial.print(millis() - startTime); Serial.println(" ms");
display.refresh();
}
}
}
file.close();
if (!valid)
{
Serial.println("bitmap format not handled.");
}
}
void drawBitmapFromSD_Buffered(const char *filename, int16_t x, int16_t y, bool with_color, bool partial_update, bool overwrite)
{
File file;
bool valid = false; // valid format to be handled
bool flip = true; // bitmap is stored bottom-to-top
bool has_multicolors = (display.epd2.panel == GxEPD2::ACeP565) || (display.epd2.panel == GxEPD2::GDEY073D46);
uint32_t startTime = millis();
if ((x >= display.width()) || (y >= display.height())) return;
Serial.println();
Serial.print("Loading image '");
Serial.print(filename);
Serial.println('\'');
#if defined(ESP32)
file = SD.open(String("/") + filename, FILE_READ);
if (!file)
{
Serial.print("File not found");
return;
}
#else
file = SD.open(filename);
if (!file)
{
Serial.print("File not found");
return;
}
#endif
// Parse BMP header
if (read16(file) == 0x4D42) // BMP signature
{
uint32_t fileSize = read32(file);
uint32_t creatorBytes = read32(file); (void)creatorBytes; //unused
uint32_t imageOffset = read32(file); // Start of image data
uint32_t headerSize = read32(file);
uint32_t width = read32(file);
int32_t height = (int32_t) read32(file);
uint16_t planes = read16(file);
uint16_t depth = read16(file); // bits per pixel
uint32_t format = read32(file);
if ((planes == 1) && ((format == 0) || (format == 3))) // uncompressed is handled, 565 also
{
Serial.print("File size: "); Serial.println(fileSize);
Serial.print("Image Offset: "); Serial.println(imageOffset);
Serial.print("Header size: "); Serial.println(headerSize);
Serial.print("Bit Depth: "); Serial.println(depth);
Serial.print("Image size: ");
Serial.print(width);
Serial.print('x');
Serial.println(height);
// BMP rows are padded (if needed) to 4-byte boundary
uint32_t rowSize = (width * depth / 8 + 3) & ~3;
if (depth < 8) rowSize = ((width * depth + 8 - depth) / 8 + 3) & ~3;
if (height < 0)
{
height = -height;
flip = false;
}
uint16_t w = width;
uint16_t h = height;
if ((x + w - 1) >= display.width()) w = display.width() - x;
if ((y + h - 1) >= display.height()) h = display.height() - y;
//if (w <= max_row_width) // handle with direct drawing
{
valid = true;
uint8_t bitmask = 0xFF;
uint8_t bitshift = 8 - depth;
uint16_t red, green, blue;
bool whitish = false;
bool colored = false;
if (depth == 1) with_color = false;
if (depth <= 8)
{
if (depth < 8) bitmask >>= depth;
//file.seek(54); //palette is always @ 54
file.seek(imageOffset - (4 << depth)); //54 for regular, diff for colorsimportant
for (uint16_t pn = 0; pn < (1 << depth); pn++)
{
blue = file.read();
green = file.read();
red = file.read();
file.read();
whitish = with_color ? ((red > 0x80) && (green > 0x80) && (blue > 0x80)) : ((red + green + blue) > 3 * 0x80); // whitish
colored = (red > 0xF0) || ((green > 0xF0) && (blue > 0xF0)); // reddish or yellowish?
if (0 == pn % 8) mono_palette_buffer[pn / 8] = 0;
mono_palette_buffer[pn / 8] |= whitish << pn % 8;
if (0 == pn % 8) color_palette_buffer[pn / 8] = 0;
color_palette_buffer[pn / 8] |= colored << pn % 8;
rgb_palette_buffer[pn] = ((red & 0xF8) << 8) | ((green & 0xFC) << 3) | ((blue & 0xF8) >> 3);
}
}
if (partial_update) display.setPartialWindow(x, y, w, h);
else display.setFullWindow();
display.firstPage();
do
{
//if (!overwrite) display.fillScreen(GxEPD_WHITE);
uint32_t rowPosition = flip ? imageOffset + (height - h) * rowSize : imageOffset;
for (uint16_t row = 0; row < h; row++, rowPosition += rowSize) // for each line
{
uint32_t in_remain = rowSize;
uint32_t in_idx = 0;
uint32_t in_bytes = 0;
uint8_t in_byte = 0; // for depth <= 8
uint8_t in_bits = 0; // for depth <= 8
uint16_t color = GxEPD_WHITE;
file.seek(rowPosition);
for (uint16_t col = 0; col < w; col++) // for each pixel
{
// Time to read more pixel data?
if (in_idx >= in_bytes) // ok, exact match for 24bit also (size IS multiple of 3)
{
in_bytes = file.read(input_buffer, in_remain > sizeof(input_buffer) ? sizeof(input_buffer) : in_remain);
in_remain -= in_bytes;
in_idx = 0;
}
switch (depth)
{
case 32:
blue = input_buffer[in_idx++];
green = input_buffer[in_idx++];
red = input_buffer[in_idx++];
in_idx++; // skip alpha
whitish = with_color ? ((red > 0x80) && (green > 0x80) && (blue > 0x80)) : ((red + green + blue) > 3 * 0x80); // whitish
colored = (red > 0xF0) || ((green > 0xF0) && (blue > 0xF0)); // reddish or yellowish?
color = ((red & 0xF8) << 8) | ((green & 0xFC) << 3) | ((blue & 0xF8) >> 3);
break;
case 24:
blue = input_buffer[in_idx++];
green = input_buffer[in_idx++];
red = input_buffer[in_idx++];
whitish = with_color ? ((red > 0x80) && (green > 0x80) && (blue > 0x80)) : ((red + green + blue) > 3 * 0x80); // whitish
colored = (red > 0xF0) || ((green > 0xF0) && (blue > 0xF0)); // reddish or yellowish?
color = ((red & 0xF8) << 8) | ((green & 0xFC) << 3) | ((blue & 0xF8) >> 3);
break;
case 16:
{
uint8_t lsb = input_buffer[in_idx++];
uint8_t msb = input_buffer[in_idx++];
if (format == 0) // 555
{
blue = (lsb & 0x1F) << 3;
green = ((msb & 0x03) << 6) | ((lsb & 0xE0) >> 2);
red = (msb & 0x7C) << 1;
color = ((red & 0xF8) << 8) | ((green & 0xFC) << 3) | ((blue & 0xF8) >> 3);
}
else // 565
{
blue = (lsb & 0x1F) << 3;
green = ((msb & 0x07) << 5) | ((lsb & 0xE0) >> 3);
red = (msb & 0xF8);
color = (msb << 8) | lsb;
}
whitish = with_color ? ((red > 0x80) && (green > 0x80) && (blue > 0x80)) : ((red + green + blue) > 3 * 0x80); // whitish
colored = (red > 0xF0) || ((green > 0xF0) && (blue > 0xF0)); // reddish or yellowish?
}
break;
case 1:
case 2:
case 4:
case 8:
{
if (0 == in_bits)
{
in_byte = input_buffer[in_idx++];
in_bits = 8;
}
uint16_t pn = (in_byte >> bitshift) & bitmask;
whitish = mono_palette_buffer[pn / 8] & (0x1 << pn % 8);
colored = color_palette_buffer[pn / 8] & (0x1 << pn % 8);
in_byte <<= depth;
in_bits -= depth;
color = rgb_palette_buffer[pn];
}
break;
}
if (with_color && has_multicolors)
{
// keep color
}
else if (whitish)
{
color = GxEPD_WHITE;
}
else if (colored && with_color)
{
color = GxEPD_COLORED;
}
else
{
color = GxEPD_BLACK;
}
uint16_t yrow = y + (flip ? h - row - 1 : row);
display.drawPixel(x + col, yrow, color);
} // end pixel
} // end line
Serial.print("page loaded in "); Serial.print(millis() - startTime); Serial.println(" ms");
}
while (display.nextPage());
Serial.print("loaded in "); Serial.print(millis() - startTime); Serial.println(" ms");
}
}
}
file.close();
if (!valid)
{
Serial.println("bitmap format not handled.");
}
}
uint16_t read16(File& f)
{
// BMP data is stored little-endian, same as Arduino.
uint16_t result;
((uint8_t *)&result)[0] = f.read(); // LSB
((uint8_t *)&result)[1] = f.read(); // MSB
return result;
}
uint32_t read32(File& f)
{
// BMP data is stored little-endian, same as Arduino.
uint32_t result;
((uint8_t *)&result)[0] = f.read(); // LSB
((uint8_t *)&result)[1] = f.read();
((uint8_t *)&result)[2] = f.read();
((uint8_t *)&result)[3] = f.read(); // MSB
return result;
}
